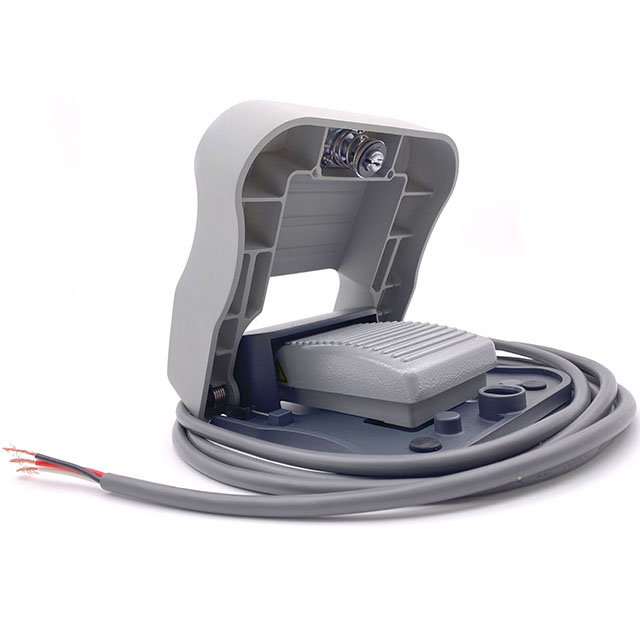

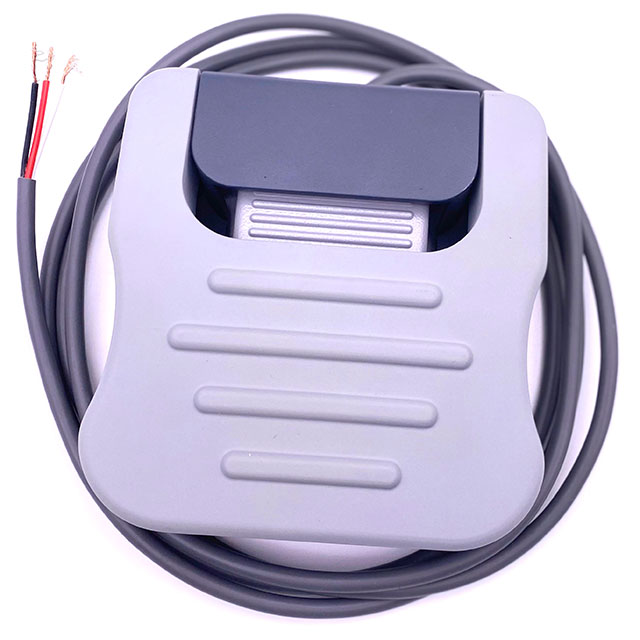

Foot Switch
Mensions:LxWxH:153mm*145mm*47mmOperating Speed:60 ops/min
Insulation Resistance:>100mΩ@500VDC
Contact Resistance:<25mΩ
Rated Current/Voltage 10A/600V AC
Circuit Type 1-way
Current Rating:15 Amps
Mechanical Life Expectancy:5 years
Weight:285g
Material:High strength plastic,Aluminum
Waterproof Grade:IPX6
Contact Operation: one open and one close
Product Details
Mensions:LxWxH:153mm*145mm*47mm
Operating Speed:60 ops/min
Insulation Resistance:>100mΩ@500VDC
Contact Resistance:<25mΩ
Rated Current/Voltage 10A/600V AC
Circuit Type 1-way
Current Rating:15 Amps
Mechanical Life Expectancy:5 years
Weight:285g
Material:High strength plastic,Aluminum
Waterproof Grade:IPX6
Contact Operation: one open and one close
